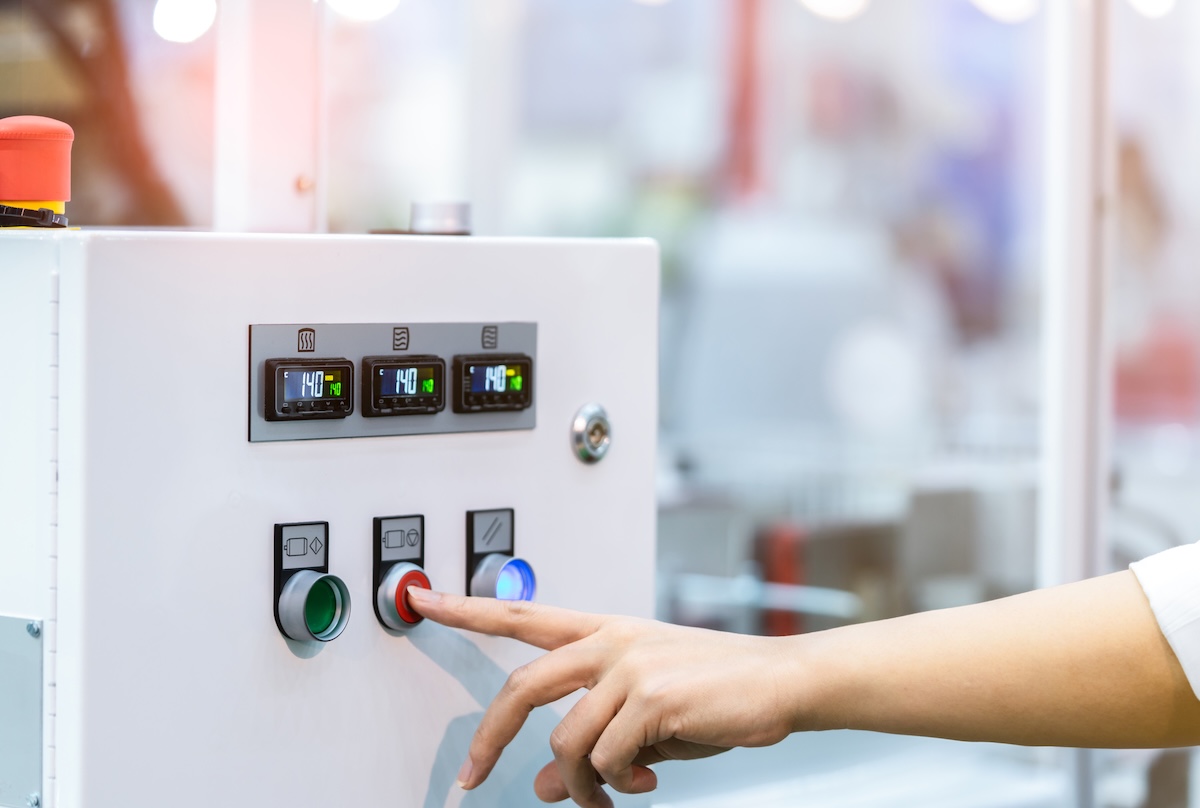

A refrigeration control panel is not a passive junction box. It is the operational brain of your cold storage or food processing plant - sequencing compressors, managing condenser and evaporator load, executing safety shutdowns, and logging the alarm history that auditors expect to see. When it fails, or when it was never adequately specified, the result is a temperature excursion, a compliance finding, or both. This article explains what a refrigeration control panel actually does, where they fail in practice, and what good specification and maintenance looks like.
What a Refrigeration Control Panel Actually Does
The control panel sits between your electrical supply and every major component in the refrigeration circuit: compressors, condenser fans, evaporator fans, liquid solenoids, and expansion valve actuators. Its job is not simply to switch them on and off - it is to sequence them in the correct order, protect each component from fault conditions, and maintain the process set points your operation depends on.
Inside a well-designed panel you will find motor protection circuit breakers sized to the locked-rotor current of each motor, contactors rated for the duty cycle of the application, overload relays set against the full-load current on the motor nameplate, and phase-failure relays to guard against single-phasing on three-phase compressor motors. The control logic - whether hardwired relay logic or a PLC - defines the sequencing: which compressors stage on as suction pressure rises, how the defrost cycle is timed and terminated, and what triggers a high-pressure lockout.
In an industrial cold storage or food processing environment, the panel also interfaces with process instrumentation: pressure transducers on the suction and discharge lines, temperature sensors in the refrigerated spaces, and flow switches on condenser water circuits. These signals feed the control logic and, in modern installations, a PLC with an HMI or SCADA connection. The panel is the point where refrigeration physics and electrical engineering meet - and where a specification gap creates operational risk.
Control Logic and the Refrigeration Circuit
In sequenced multi-compressor plant, control logic determines lead-lag switching, capacity staging, and defrost interlocking. A fault in this logic - whether due to incorrect PLC programming, a failed output card, or undocumented relay modifications - can result in simultaneous compressor starts, flooded evaporators, or defrost cycles that never terminate. Each of these translates directly into a temperature excursion.
Common Failure Points That Cause Temperature Excursions and Compliance Failures
The failure modes seen most frequently in industrial refrigeration panels are not exotic. They are predictable, progressive, and preventable - but they are routinely missed because the panel is only opened when something has already stopped.
Ageing contactors are the most common cause of unplanned compressor shutdowns. Contactors in refrigeration applications switch under load repeatedly - staging on compressors as demand rises, de-energising during defrost, and tripping on overload. The contacts pit and erode over time. A contactor running with pitted contacts draws higher arc energy on each switching event, accelerating erosion, increasing contact resistance, and generating heat. Left uninspected, the contact fails to make fully, the compressor runs single-phase on a three-phase circuit, and the overload trips - often at 2am, during a peak production run.
Inadequate protection schemes are a different category of problem. An undersized motor protection circuit breaker, a missing phase-sequence relay, or an overload relay set above nameplate current does not cause an immediate failure - it removes the last line of defence when something else goes wrong. In a poorly specified panel, a compressor motor running with a mechanical bearing fault will not trip its protection until the winding is already damaged.
- Ageing contactors with pitted contacts - progressive arc erosion causes heat build-up and eventual single-phasing
- Overload relays set above nameplate current - removes fault protection for the compressor motor winding
- Missing phase-failure or phase-sequence relays - leaves three-phase motors unprotected against supply asymmetry
- Poorly documented wiring - modifications made without redline drawings create fault-finding delays that extend downtime
- Corroded or loose terminal connections - high-resistance joints generate heat and cause intermittent faults that are difficult to trace
- Undersized cable or busbar ratings - thermal stress accelerates insulation degradation, particularly in warm plant rooms
Poorly documented wiring is a compliance and operational problem simultaneously. When a panel has been modified over its service life without updated schematic drawings, fault-finding becomes a process of elimination rather than engineering. An engineer tracing an intermittent alarm condition through undocumented wiring takes significantly longer to isolate the fault - and the risk of a secondary fault caused by incorrect isolation is real. Auditors inspecting an installation under BS EN 60204-1 expect documentation that matches installed reality.
Illustrative Scenario: Thermal Imaging Finds Progressive Contactor Failure
Consider a cold storage facility with a four-compressor rack operating on a 24-hour production cycle. During a thermal imaging survey of the refrigeration control panel, an engineer identifies one contactor running 31°C above the reference temperature of adjacent identical contactors on the same panel. The elevated thermal signature is consistent with increased contact resistance caused by pitting on the main contacts. The correct engineering response is to replace the contactor during the next planned maintenance window and verify overload relay settings against current motor nameplate data. Left unaddressed, the degraded contact would progress to intermittent open-circuit events, causing single-phase motor operation and eventual overload trip — resulting in a temperature excursion in the associated cold store zone. Illustrative example based on representative JBB project work.
Bespoke Panel Design vs Off-the-Shelf: Why Specification Matters from the Start
Off-the-shelf refrigeration control panels exist on the market and they solve a simple problem: low initial cost. What they do not solve is the problem of your specific installation - your compressor motor load profiles, your defrost cycle requirements, your expansion plans, and your compliance obligations. Fitting a generic panel to an industrial refrigeration system is an engineering compromise that typically becomes apparent within the first service life.
The Cost of a Generic Panel Becomes Apparent at the First Modification
Off-the-shelf refrigeration panels are rarely built with the spare enclosure volume, unused circuit ways, or additional PLC I/O that an expanding operation requires. When a second evaporator zone or a new defrost circuit needs to be added, the modification work — cutting into a live panel, re-routing busbars, extending the enclosure — costs substantially more than the provision would have cost at the specification stage. Bespoke design absorbs future load at day one; generic panels pass that cost back to the operator at the worst possible time.
Bespoke panel design begins at the schematic stage. A design developed in EPLAN Electric P8 captures the exact load profile of every motor on the circuit, sizes protection devices against actual full-load and locked-rotor current values, and defines the cable ratings, busbar sizing, and protection coordination from the first drawing. Expansion provisions - spare ways in the distribution section, unused PLC I/O slots, physical space in the enclosure - are specified at this stage, not retrofitted later when they cost significantly more.
The distinction matters for compliance as well as reliability. BS EN 60204-1 requires that the electrical equipment of machinery - including industrial refrigeration plant - is designed and documented to defined safety requirements. A panel manufactured to these requirements carries the documentation trail that demonstrates compliance: schematic drawings, component data sheets, protection coordination calculations, test records, and a declaration of conformity. A generic panel may not. As a NICEIC-approved contractor with in-house manufacturing capability, JBB Electrical delivers panels with the complete documentation set required for audit and insurance purposes.
BS EN 60204-1 Compliance Depends on Documentation, Not Function
A panel that operates correctly but lacks a current technical file — schematic drawings matching installed wiring, component data sheets, protection coordination records, and a declaration of conformity — does not meet BS EN 60204-1. Function and documentation are separate obligations. An audit or insurance assessment tests both. A bespoke panel manufactured to this standard, with the complete documentation set maintained through its service life, provides compliance evidence that a generic panel without a technical file cannot match.
Specification Must Include Future Load Provisions
A panel specified only for the day-one load profile will require costly modification when production capacity increases. The schematic stage is the right time to specify spare circuit ways, additional PLC I/O capacity, and enclosure volume for future components. Adding these provisions later - cutting into a live panel, re-routing busbars, extending the enclosure - is disproportionately more expensive and carries installation risk that could have been avoided.
PLC Integration and Alarm Management in Modern Refrigeration Control Panels
A relay-logic refrigeration panel can sequence compressors and execute defrost cycles. What it cannot do is generate a timestamped alarm history, communicate fault codes to a central SCADA system, or adjust its control strategy based on ambient temperature trends. PLC-based refrigeration control panels do all of these things - and in a food processing or pharmaceutical cold storage environment, the alarm management and data logging capabilities are not optional extras: they are audit requirements.
PLC integration across Siemens, Allen-Bradley, and RDM platforms allows the control logic to be precisely tailored to the refrigeration process. Capacity staging thresholds, defrost timing parameters, alarm setpoints, and safety interlock sequences are all defined in software - and critically, they are documented in code that can be version-controlled, backed up, and recovered after a PLC failure. This is a fundamental reliability advantage over hardwired relay logic, where an undocumented relay modification may be the only record of a control change made years earlier.
PLC Platform Selection and Long-Term Maintainability
The PLC platform specified for a refrigeration control panel determines the long-term maintainability of the control logic as much as the day-one functionality. A platform that is well-supported, widely understood by the site's engineering team, and covered by a structured backup and version-control regime is a reliability asset. A platform chosen on initial hardware cost alone, without considering the availability of replacement modules, the documentation of the control logic, or the skill base required to modify it safely, is a reliability liability. Platform selection is an engineering decision, not a procurement one.
Alarm management is where PLC integration has the most direct impact on temperature excursion prevention. A well-configured alarm management strategy defines alarm priorities, suppresses nuisance alarms during known transient conditions (defrost completion, pull-down after loading), and escalates unacknowledged critical alarms through multiple notification channels. The difference between a high-temperature alarm that wakes an engineer at 2am and one that sits unacknowledged on an HMI screen until the morning shift is a configuration decision made at commissioning.
SCADA Integration and Temperature Monitoring
Where refrigeration panels are integrated with SCADA or building management systems, temperature sensor data from the refrigerated spaces feeds directly into the alarm management layer. Real-time alerting on space temperature - not just suction pressure - provides early warning of a developing excursion before product is at risk. This integration is most effective when the temperature monitoring system is engineered as part of the panel specification, not added as an afterthought.
Maintenance, Inspection, and Compliance Obligations Under BS 7671 and BS EN 60204-1
Compliance obligations for industrial refrigeration control panels fall under two distinct standards, and conflating them is a common source of audit exposure.
BS 7671 — the IET Wiring Regulations — governs the electrical installation: the supply to the panel, the distribution within it, earthing arrangements, cable selection, and protective device coordination. It requires periodic inspection and testing at intervals appropriate to the installation type and environment. For industrial premises, the IET Guidance Note 3 recommends a maximum initial inspection interval of three years, with subsequent intervals not exceeding three years where the environment is demanding. A cold storage plant room, with its high humidity, temperature cycling, and vibration from compressor operation, represents exactly such a demanding environment, and inspection intervals should be set accordingly — not defaulted to the maximum. Inspection under BS 7671 produces an Electrical Installation Condition Report (EICR) that records the condition of the installation and any items requiring remedial action.
BS EN 60204-1 applies specifically to the electrical equipment of machinery - which includes industrial refrigeration plant and its associated control panels. It defines requirements for protection against electric shock, short-circuit and overload protection, control circuit design, emergency stop provisions, documentation, and marking. A panel manufactured to BS EN 60204-1 must have a technical file that includes schematic drawings, component specifications, and a declaration of conformity. A panel that was specified without reference to this standard - or one whose documentation has not been maintained - may fail an audit even if it has been electrically functional.
- Periodic inspection and testing (EICR) under BS 7671 at intervals appropriate to the plant room environment
- Protection device testing - verifying that overload relays, motor protection circuit breakers, and phase-failure relays operate within specified parameters
- Thermal imaging survey of contactors, connections, and busbars to identify developing faults before they cause failure
- Contact condition inspection and replacement scheduling for contactors operating at high duty-cycle
- PLC configuration backup verification - confirming that a current backup exists and can be restored to replacement hardware
- Documentation audit - verifying that schematic drawings match installed wiring and that all modifications are recorded
A structured maintenance programme that addresses these items does not just protect against compliance penalties - it directly extends panel service life and reduces unplanned downtime. Thermal imaging, in particular, identifies developing faults that visual inspection misses entirely. A busbar connection running at elevated temperature relative to its reference is a real finding that can be addressed in a planned maintenance window rather than at 3am during a product run.
How to Specify a Refrigeration Control Panel for Long-Term Reliability
A panel specification that produces long-term reliability is not a list of preferred brands. It is a technical document that defines what the panel must do, how it must protect the equipment it controls, what it must document, and how it must accommodate future change.
The core elements of a complete specification include:
- Schematic design - full circuit schematics, not single-line diagrams, developed against the actual load schedule and produced in a design tool that supports as-built revision tracking
- Component ratings - protection devices, contactors, and busbars specified against calculated full-load and fault current values, not estimated or carried over from a previous installation
- Protection coordination - discrimination between upstream and downstream protective devices verified at the design stage, so a compressor fault does not take down the entire panel
- PLC I/O allocation - documented against every field device, with spare capacity for future sensors, actuators, or control functions
- Alarm management strategy - alarm priorities, acknowledgement requirements, and notification routes defined before commissioning, not configured in response to nuisance alarms after go-live
- Testing protocols - factory acceptance test (FAT) procedures that verify each protection function before the panel leaves the workshop
- As-built documentation - schematic drawings, wiring schedules, component data sheets, test certificates, and the PLC program backup, supplied with the panel and maintained through its service life
The same team that designs the panel should build, test, and document it. Same team: design, build, test, document - eliminating the accountability gaps that arise when design, manufacture, and installation are divided between different contractors. When a fault occurs five years after commissioning, the engineer who opens the panel should find documentation that matches what is installed. That outcome requires a single point of accountability from the start.
Documentation is a Maintenance Asset, Not a Box-Ticking Exercise
Facilities that maintain current as-built drawings and PLC configuration backups recover from electrical faults in hours rather than days. When a PLC output card fails and the replacement needs to be configured, a current backup reduces the recovery window to the time required to swap hardware. Without it, re-creating the control logic from memory or reverse-engineering from the installed wiring is a multi-day exercise - during which the refrigeration plant is at risk.
The JBB Refrigeration Control Panel Methodology
The JBB Refrigeration Control Panel Methodology
Assess
We survey the existing refrigeration control panel and plant room electrical installation against BS 7671 and BS EN 60204-1 requirements — inspecting contactors, protection device settings, PLC configuration backups, and as-built documentation accuracy to establish the current compliance and reliability baseline. As a NICEIC-approved contractor, we produce a prioritised findings report with defined remedial timelines.
Modernise
Where the assessment identifies an inadequate or end-of-life panel, we design a replacement using EPLAN Electric P8 — specifying protection devices against actual load schedules, integrating PLC control logic across Siemens, Allen-Bradley, or RDM platforms, and provisioning spare I/O capacity and enclosure space for future refrigeration plant expansion. Bespoke manufacture is completed using our in-house manufacturing capability, eliminating the accountability gaps that arise when design and build are separated. Drawing on nearly six decades of industrial electrical engineering since our founding in 1966, we bring proven specification discipline to every replacement panel.
Protect
Each panel undergoes a full factory acceptance test verifying protection coordination, overload relay settings, PLC sequencing logic, alarm management configuration, and emergency stop function before leaving the workshop. Testing certificates and as-built schematic drawings are produced at this stage, meeting BS EN 60204-1 technical file requirements and providing the documentation baseline for the installation's service life. Where temperature probes and process sensors are included in the panel scope, calibration is performed to UKAS-traceable standards, ensuring that the instruments providing inputs to the control logic are verified at the point of commissioning.
Prevent
We establish a structured maintenance programme covering thermal imaging of contactors and busbar connections, protection device testing, PLC configuration backup verification, and contact condition inspections at intervals appropriate to the plant room environment. The Compliance & Breakdown Prevention Assessment identifies any emerging faults before they reach the threshold that causes a temperature excursion or compressor trip, connecting every maintenance action to a specific operational outcome.
Support
Long-term support includes scheduled inspections, immediate response protocols for unplanned faults, and documentation maintenance as the refrigeration plant evolves. PLC program backups are held and version-controlled so that hardware failures are recovered in hours rather than days. As systems expand, we update schematic drawings and I/O allocations to maintain the documentation accuracy that auditors and insurers require.
