    Temperature Probe Calibration: The Complete Guide for Industrial Accuracy

    Ensure your temperature probes deliver precise readings. This guide covers calibration methods, compliance, and preventive maintenance for industrial systems.

    Matt Angrave
    May 27, 2026
    13 min read

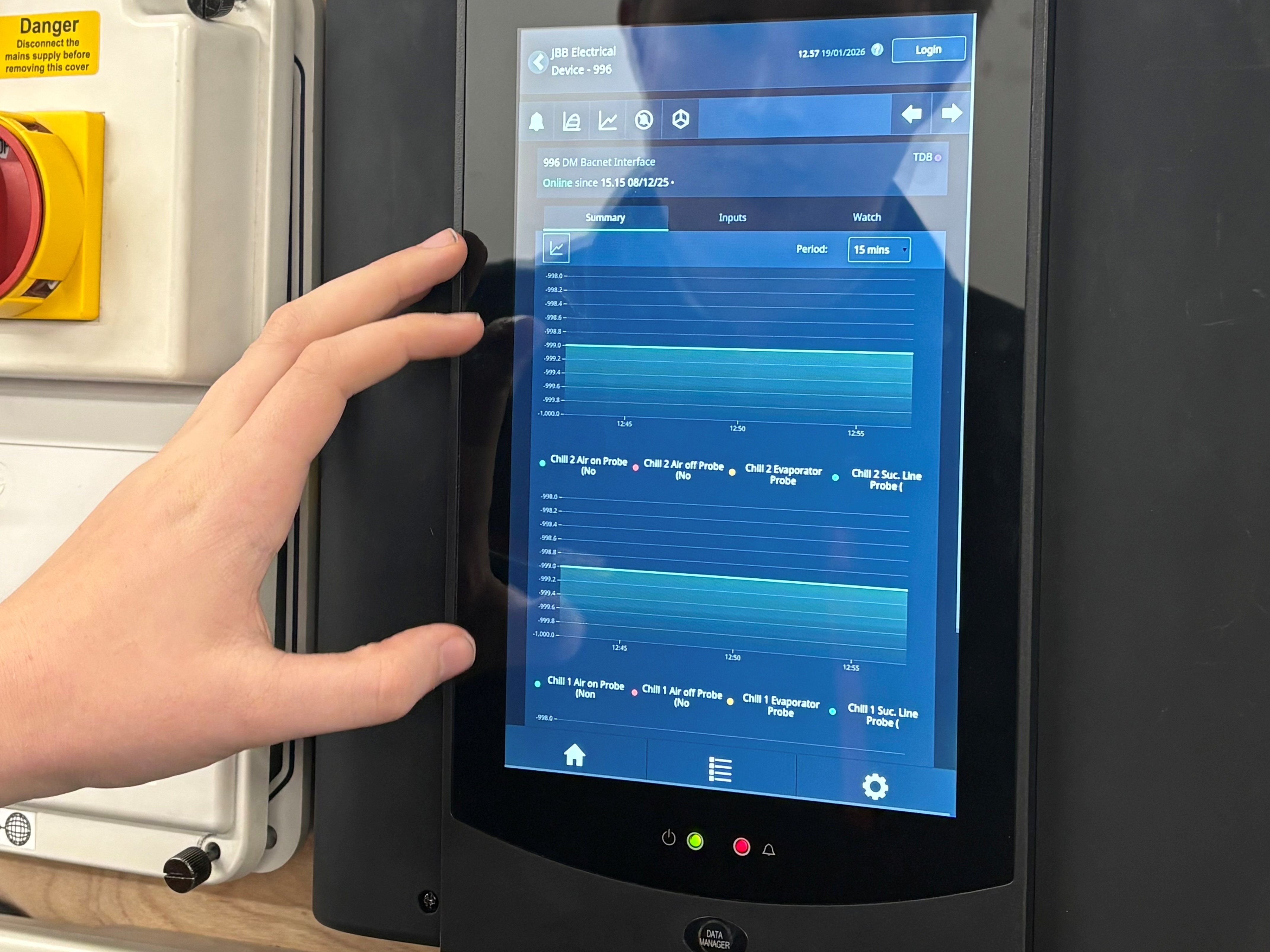

    Temperature Probe Calibration: The Complete Guide for Industrial Accuracy

    Temperature probe calibration is one of the most underestimated parts of a site's compliance position. A year's worth of certificates looks complete on paper. Then the auditor arrives and asks which probes have drifted between cycles, how that drift compares across the probe population, and how the schedule is evolving in response. That is the moment a calibration visit reveals itself as a transaction rather than a programme.

    The gap matters. A calibration visit produces paperwork. A calibration programme produces drift evidence your site can act on, interval decisions the programme earns rather than inherits, and documentation that holds under audit without reconstruction. Everything in this guide starts from that difference.

    ๐Ÿ’ก Key Insight: The audit question is never whether your probes read accurately today. It is whether you can evidence they have read accurately every day since the last audit โ€” and whether the schedule that got you here is still right for the next cycle.

    What your calibration programme has to do

    A well-designed calibration programme answers two questions at once. The first is an engineering question: are your probes reading accurately enough for the applications they serve? The second is a documentation question: can you evidence the traceability chain that supports your compliance position?

    Both have to be answered for every critical measurement, at every cycle. A probe that reads accurately but carries incomplete traceability documentation will fail a regulatory audit. A probe with perfect documentation that has drifted beyond application tolerance will produce quality events the paperwork cannot compensate for.

    On a general ambient monitor, a measurement slightly outside tolerance produces reported uncertainty. On a HACCP critical control point, a reactor jacket, or a pharmaceutical storage compartment, the same drift produces product whose compliance state depends on measurement that may not have been accurate when it was made. The programme exists to detect, document, and correct inaccuracy before it crosses tolerance โ€” not to confirm it afterwards.

    โ— Two calibration questions, not one: Current accuracy within tolerance, and unbroken documented traceability. A programme that answers one and not the other is not defensible under audit, no matter how thorough it looks from inside the maintenance team.

    Sitting on top of both is a third question the programme structure has to address independently of any single visit. How often should each probe be calibrated, and is the current interval still appropriate given what the probe has actually done in service? Interval-setting is not a once-at-commissioning decision. It is an engineering position that evolves as the programme accumulates evidence.

    Probe types and how they drift

    Different probe technologies drift differently, which means they need different calibration approaches and different interval logic. Three technologies cover most installed UK industrial sites.

    Resistance temperature detectors (RTDs) measure temperature by the resistance change of a platinum element. They drift slowly and predictably. A PT100 in a stable ambient environment can hold a narrow tolerance band for a year of service. The same probe in a process application with chemical exposure or thermal cycling may drift several times faster. The calibration is straightforward โ€” multi-point verification against a reference โ€” but its value depends on the uncertainty of the reference used. A calibration performed against reference equipment whose uncertainty is not materially better than the required tolerance is not a useful calibration.

    Thermocouples produce a voltage signal across a junction of two dissimilar metals. They drift faster than RTDs because the junction's metallurgical properties degrade under temperature cycling and chemical exposure. A type-K thermocouple in a stable heat treatment application behaves differently from the same thermocouple in a continuous high-temperature process, which may force quarterly calibration or early replacement. Lead wire effects and terminal connections are further sources of measurement error the procedure has to account for.

    Integrated digital sensors combine the sensing element, signal processing, and communication in a single device. That simplifies installation and complicates calibration. The output is a digital value rather than a direct resistance or voltage, so calibration verifies sensing accuracy at operational points and the integrity of the communication path. Configuration settings, alarm thresholds, and data logging parameters all have to be confirmed against the calibrated state.

    Relevant JBB service: Temperature Probe Calibration

    Each probe type's interval is set initially against its technology, the criticality of the application it serves, and the environment it is installed in. But the starting interval is a hypothesis, not a conclusion. The first two or three calibration cycles establish the drift evidence you use to confirm whether the starting interval is right, should be shortened against faster-than-expected drift, or can be extended against evidence of unusual stability. Probes showing accelerating drift across consecutive cycles are signalling end-of-life and should be scheduled for replacement regardless of whether the current reading is still in tolerance.

    ๐Ÿ’ก Drift trajectory, not cost ratio: The replace-versus-recalibrate decision is an engineering judgement, not a cost calculation. A probe with stable within-tolerance calibrations across multiple cycles earns continued use. A probe with accelerating drift is signalling end-of-life regardless of its current reading. The question is not what the calibration costs compared to the probe โ€” it is whether the drift trajectory lets the probe reach the next cycle inside tolerance.

    What UKAS traceability actually requires

    UKAS traceability is the documentation structure that turns a sequence of certificates into a defensible audit position. It is straightforward to maintain when the programme is built on it from the start. Where it has drifted or the documentation has accumulated inconsistently, audit readiness becomes a reconstruction exercise.

    Definition: UKAS traceability is an unbroken chain of calibrations linking each field measurement through site reference equipment to a UKAS-accredited laboratory, and through that to the national temperature standard at the National Physical Laboratory. Each step carries a documented measurement uncertainty. The chain is only as strong as its weakest link. A calibration performed with reference equipment that has not itself been calibrated by a UKAS-accredited body is outside the chain, regardless of how the measurement was performed.

    The chain has four links:

    • Field instrument calibrated against site reference equipment

    • Site reference equipment calibrated against a UKAS-accredited laboratory

    • Laboratory accredited against national standards by UKAS

    • National standards maintained at NPL against international primary references

    Each link carries a documented uncertainty calculation, and the uncertainty accumulates along the chain. That is why the uncertainty of your reference equipment has to be materially better than the tolerance your field instruments are required to hold. A reference just about capable of matching the field tolerance is not a useful reference.

    The documentation a regulator or insurance underwriter expects to see is the same documentation the programme produces as a by-product of proper execution: current calibration certificates organised by measurement point, reference equipment certificates with their own UKAS traceability, procedural records showing the methodology at each visit, and corrective action records for every measurement that exceeded tolerance. Produced continuously, the audit position assembles itself. Produced reactively for inspection, it consumes weeks of maintenance time and still leaves gaps the inspector finds.

    โš  Latent documentation failure: An audit does not fail because a probe is reading incorrectly. It fails because the documentation cannot evidence that the probe has been reading correctly. A probe currently in tolerance whose previous cycle cannot be located, whose reference equipment certificate has expired, or whose traceability chain has a break no-one noticed is a finding. The measurement may be accurate, but the compliance position is not defensible until the audit surfaces it.

    The corrective action record is where most programmes have the weakest documentation. An out-of-tolerance finding is not a programme failure โ€” it is the programme doing its job. The failure, if any, is in what follows: the investigation into how long the measurement may have been out of tolerance, the impact assessment against product or process output during the suspect period, and the schedule adjustment or replacement decision. A programme that documents corrective actions as consistently as it documents certificates operates at a different standard of defensibility.

    How calibration fits into the maintenance calendar

    A calibration programme that runs as a separate workstream hits the same constraint every site faces: your maintenance team's calendar is already full. The programmes that work reliably year after year are integrated into activities the team already runs โ€” scheduled shutdowns, thermal imaging surveys, CMMS-managed preventive maintenance, and annual audit cycles โ€” rather than adding a fifth workstream to the existing four.

    During planned shutdowns, the calibration window uses an access opportunity you are already paying for. Probes that require removal or in-situ calibration are scheduled against the outage. Configuration backups on intelligent instrumentation can be verified while the control system is already isolated. Where possible, the calibration visit overlaps with other engineering work requiring the same panels offline, so the marginal downtime cost approaches zero.

    The CMMS carries the calibration register as linked data against each instrumentation point, so the next calibration due date surfaces in the maintenance workflow without a separate lookup. A work order raised on a processing zone shows not only the maintenance task but the calibration status of the instrumentation on that zone.

    Relevant JBB service: Temperature Probe Calibration

    ๐Ÿงช Illustrative example based on representative JBB project work: Consider a mid-sized food processing site with twelve temperature monitoring points across cook and chill zones, four years into an annual calibration cycle. At the year-four visit, the as-found readings on two probes in the cook zone show drift of roughly 0.3ยฐC โ€” still within application tolerance, but materially larger than the cohort average.

    A review of the data across four cycles shows the drift is accelerating across consecutive years on those two probes. Both are scheduled for replacement during the next planned shutdown rather than allowed to continue until they cross tolerance. The schedule adjustment prevents an eventual out-of-tolerance finding on HACCP-relevant measurements and converts the work from a reactive response into a planned engineering task.

    The pattern โ€” drift velocity across cycles as a signal distinct from absolute accuracy at any single visit โ€” is what an integrated programme surfaces and a transactional calibration visit does not. Thermal imaging surveys on the panels feeding the probes produce condition data on the wider measurement chain, not only the probe itself. A hotspot on the input card for a thermocouple circuit is a signal the measurement may be affected by contact resistance, regardless of whether the probe is calibrated. The programme's reach has to include the full measurement chain.

    ๐Ÿ’ก Programme maturity review: After three cycles, your programme should be able to answer four questions from its own records โ€” without going back to the provider. Which probes have drifted the most across cycles? Which probes have drifted the least? Which probes are trending toward tolerance? And are any intervals ready for adjustment? If the records cannot answer these, the programme is producing certificates rather than evidence.

    Where JBB fits: calibration as an engineering discipline

    JBB delivers temperature probe calibration as an engineering discipline integrated with the broader electrical and control systems the probes feed into โ€” not as a standalone transactional visit.

    JBB Method: Assess โ†’ Modernise โ†’ Protect โ†’ Prevent โ†’ Support

    • Assess: inventory the installed probe population, audit the traceability documentation, and review the drift history against current schedule decisions.

    • Modernise: replace probes whose drift trajectories indicate end-of-life before failure forces the response, scheduled against planned shutdowns rather than executed reactively.

    • Protect: deliver UKAS-traceable calibration with corrective action records raised and closed against every out-of-tolerance finding.

    • Prevent: integrate the calibration register with the site's CMMS and embed scheduled engineering reviews that evolve intervals as the programme matures.

    • Support: retain calibration history, traceability documentation, and engineering context within the same JBB team holding the broader electrical engineering for the site.

    The team delivering the calibration is the same team that designs, maintains, and documents the electrical and control systems the probes feed into. Where EPLAN-generated as-built schematics exist for those control systems, they provide the reference for the calibration scope; where they do not, they are produced as part of the wider engineering engagement. JBB has been delivering this continuity of engineering responsibility to UK industrial sites since 1966, underpinned by NICEIC-approved electrical engineering across the installed control systems the probes measure.

    โœ… What "good" looks like: A programme that produces drift evidence you can act on, interval decisions the evidence earns, corrective actions documented to the same standard as certificates, and an audit position that assembles itself from routine records โ€” not reconstructed for inspection.

    Frequently Asked Questions

    What risks does inadequate calibration create?

    The risks sit at two layers. At the measurement layer, probes drift beyond application tolerance and produce process data the control system acts on as if accurate โ€” with consequences scaling from reported uncertainty on general monitoring to compliance events on HACCP critical control points. At the documentation layer, missing certificates, expired reference equipment records, or broken traceability chains turn an accurate measurement into a defensive liability when the audit arrives. A programme that catches only one risk and not the other is not a complete programme.

    How does compliance affect this?

    UKAS traceability is the documentation structure most regulatory frameworks expect. Your field measurements trace through site reference equipment to a UKAS-accredited laboratory and through that to the national temperature standard at NPL. Each link carries a documented measurement uncertainty that accumulates along the chain. The regulatory expectation is not just that the measurement was correct โ€” it is that the traceability is unbroken and evidenced. Regulators and insurance underwriters read the documentation as closely as the measurement.

    What preventive measures should be taken?

    Build the schedule against the probe's technology, application criticality, and installed environment, then treat the starting interval as a hypothesis rather than a conclusion. The first two or three cycles establish drift evidence you use to confirm whether the interval is right, needs shortening, or can be extended. Document corrective actions with the same discipline you document certificates. Integrate the calibration register with your CMMS so due dates surface in the maintenance workflow. Schedule engineering reviews that roll accumulated evidence back into interval decisions.

    How do modern systems improve reliability?

    Integrated digital sensors simplify installation and add diagnostic visibility, but they shift calibration from a direct resistance or voltage check to verification of sensing accuracy plus communication integrity plus configuration. CMMS-linked calibration registers surface due dates in the maintenance workflow rather than sitting in a separate system. Thermal imaging on the panels feeding the probes captures condition data on the wider measurement chain, not just the probe. Together, these shift calibration from a scheduled transaction into an integrated part of the site's engineering operation.

    Next Step: Speak with a JBB Engineer About Your Calibration Challenge

    A JBB calibration review examines the current schedule against the probe population, the drift evidence, and the compliance regime โ€” identifying where intervals, documentation, or integration with the wider maintenance operation need to evolve for the next cycle. The output is a schedule and evidence position you can defend under audit and build on over the programme's life.

    Speak with a JBB engineer about your calibration challenge to review the current position against the installed probe population and establish what the next cycle needs to look like.
