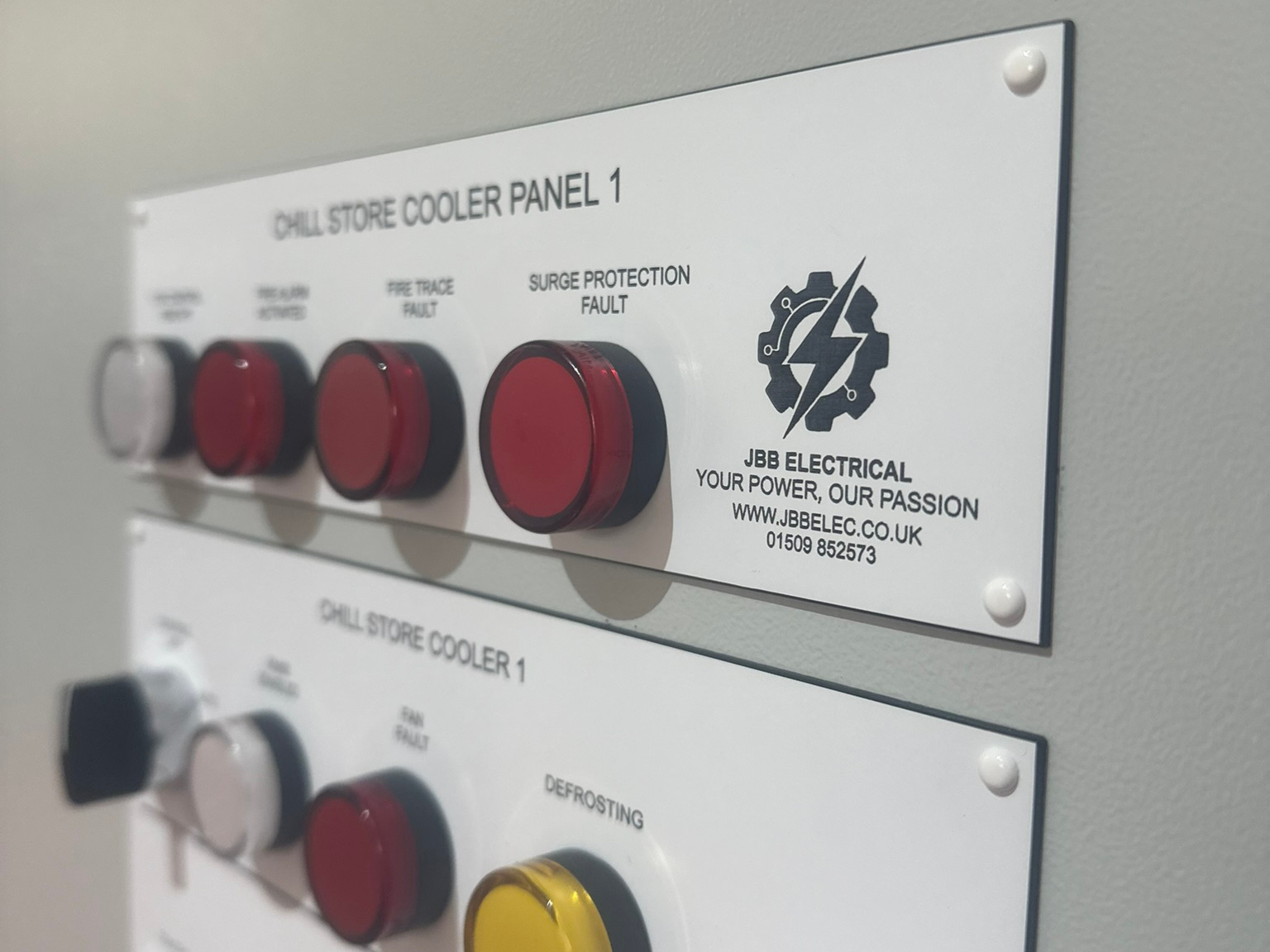

Calibrating a Temperature Probe: Process, Standards and When to Replace

Calibrating a temperature probe is not a paperwork exercise. It is the process that determines whether the readings driving your automated controls, SCADA alarms, and regulatory audit trail are actually accurate - or whether they have drifted silently away from reality.

For project engineers and facilities teams running industrial temperature monitoring systems, understanding what calibration involves - and what it cannot fix - is the difference between defensible compliance and a gap that surfaces during an inspection.

What Temperature Probe Calibration Actually Involves: The Step-by-Step Process

The core of any calibration process is a controlled comparison between the probe under test and a reference standard of known accuracy. Two methods dominate industrial practice: the reference bath and the dry block comparator.

A reference bath - typically a liquid bath calibrator using water, oil, or a specialist fluid - maintains a highly stable, uniform temperature. The probe under test is immersed alongside a UKAS traceable reference thermometer. Both sensors see the same thermal environment. The difference between the readings is the probe's error at that temperature.

A dry block comparator achieves the same principle using a metallic insert rather than a liquid medium. It is faster to set up and better suited to site use, though it introduces a small additional uncertainty due to the radial temperature gradient in the insert - a factor the calibration engineer must account for in the uncertainty budget.

1. Set the reference bath or dry block to the target calibration temperature and allow it to stabilise thermally.

2. Insert the reference standard and the probe under test. Immersion depth must meet the minimum specified for the sensor type to avoid stem conduction errors.

3. Record the probe reading against the reference at steady state - typically at a minimum of three temperature points spanning the probe's operational range.

4. Calculate the deviation at each point. This is the as-found reading.

5. Where the probe passes within tolerance, the as-found reading is recorded and the certificate is issued. Where it falls outside tolerance, adjustment or replacement is considered before the as-left reading is recorded.

6. Generate the calibration certificate documenting the as-found reading, any adjustment made, the as-left reading, the reference standard used, its traceability chain to UKAS accreditation, and the uncertainty of measurement.

JBB Electrical performs probe calibration to UKAS traceable standards, ensuring that every certificate in your records carries a documented traceability chain from the reference standard used on-site back to national measurement standards. This is the baseline requirement for pharmaceutical, food, and cold storage compliance audits.

Why Does a Temperature Probe Go Out of Tolerance? Understanding Drift in Industrial Environments

Temperature probe drift - the gradual shift in a sensor's output relative to true temperature - is not a failure mode. It is an expected characteristic of every measurement device. The question is not whether a probe will drift, but how quickly and how far.

RTD sensors (Pt100 and Pt1000) are the most stable class used in industrial monitoring, with platinum elements that maintain accuracy over long service periods under moderate conditions. Thermocouples are more susceptible to drift and typically require more frequent calibration in demanding environments.

Four mechanisms drive probe drift in practice:

• Sensor element degradation: In RTDs, oxidation or contamination of the platinum element shifts resistance characteristics. In thermocouples, inhomogeneity in the wire caused by metallurgical changes at high temperatures produces output errors.

• Mechanical stress: Vibration from nearby machinery, handling during maintenance, or repeated insertion and withdrawal from process connections all impose mechanical stress on the sensing element and connections.

• Contamination: Moisture ingress through damaged cable glands, process fluid ingress in poorly sealed assemblies, and chemical contamination in food and pharmaceutical environments all affect sensor output.

• Thermal cycling: Repeated transitions between extreme temperatures - particularly relevant in cold-store environments where defrost cycles push a probe from -25°C to +10°C repeatedly - create differential expansion stress on the element and connections.

Cold-store environments and high-temperature oven applications both accelerate drift through thermal cycling, but for opposite reasons. Cold-stores impose moisture ingress risk and repeated freeze-defrost stress. Ovens impose oxidation of sensor elements and high-temperature annealing effects in thermocouple wire. Both environments warrant shorter calibration intervals than moderate-condition process monitoring.

Acceptance Tolerances by Application: Pharmaceutical Cold-Chain vs Food Processing vs Ambient Monitoring

Tolerance is not a single number. What constitutes a calibration pass depends entirely on what the probe is controlling or monitoring - and what consequence an error at that magnitude would have for product safety, process integrity, or regulatory compliance.

Pharmaceutical cold-chain

Pharmaceutical cold-chain monitoring is governed by GDP (Good Distribution Practice) guidelines and, where applicable, EU Annex 1 requirements for sterile product manufacturing. These frameworks require temperature monitoring systems to demonstrate measurement accuracy sufficient to confirm that product has remained within its defined storage temperature range - typically 2°C to 8°C for refrigerated medicines.

In practice, probes in pharmaceutical cold rooms are typically calibrated to acceptance tolerances of ±0.1°C to ±0.5°C, depending on the criticality of the application and the total uncertainty budget for the monitoring system. The tighter the storage band, the tighter the probe tolerance must be - a ±0.5°C probe error in a 6°C total allowable range is a significant proportion of the available margin.

Food processing and cold storage

Food processing environments require probe accuracy sufficient to demonstrate HACCP compliance - that critical control points are maintained within defined limits. Cold storage for food products must comply with relevant food hygiene regulations, which specify maximum storage temperatures for different product categories.

Calibration tolerances for cold storage probe calibration procedures are typically in the range of ±0.3°C to ±1.0°C, calibrated at the critical temperatures for the application - commonly 0°C, -18°C for frozen storage, and the ambient temperature range relevant to the process. The cold storage probe calibration procedure must cover the full operational range, not just a single mid-range point.

Warehouse and ambient monitoring

General warehouse ambient monitoring - tracking environmental conditions for stock integrity or building management rather than product safety - typically accepts wider tolerances of ±1.0°C to ±2.0°C. The regulatory stakes are lower and the consequence of a probe error at this magnitude is generally manageable.

Calibrate or Replace: The Technical and Cost Criteria That Determine the Right Decision

The probe calibration versus replacement decision is one of the more consequential judgements in maintaining a temperature monitoring system - and it is often made without a clear framework. Defaulting to recalibration when replacement is the correct answer wastes calibration spend and leaves inaccurate sensors in service.

Four technical criteria indicate that replacement rather than recalibration is the correct response:

• Drift exceeds the correction range: Some probe types allow a defined offset correction at the transmitter or in software. Where the drift exceeds the correction capability of the transmitter or software, the probe cannot be returned to compliance through recalibration alone.

• Physical damage is confirmed: Bent sheaths, damaged cable, cracked heads, or confirmed moisture ingress require replacement. Recalibrating a physically damaged probe and returning it to service is not defensible.

• Escalating recalibration frequency: Where a probe is failing calibration at every interval - or increasingly frequently - the drift rate itself indicates underlying deterioration. Continued recalibration is reactive cost management, not asset management.

• Cost crossover: Where the cost of repeated recalibration over the next service interval equals or exceeds the cost of a replacement probe, replacement is the economically correct decision - particularly where the probe type is a standard catalogue item with short lead times.

The decision should be documented. A calibration record that shows a probe returned to service after an out-of-tolerance as-found reading, with no documented rationale for why recalibration rather than replacement was the response, creates an audit exposure. Auditors will ask. The answer needs to be in the record.

How Do You Keep Historical Temperature Data Auditable? Integrating Calibration Records Into SCADA and Monitoring Systems

The integrity of historical temperature data depends on more than the data itself. A regulatory auditor reviewing a temperature excursion recorded six months ago needs to know what probe generated that data, what its calibration status was at the time, and whether any adjustments were made to the measurement system in the intervening period.

This is where calibration records connect directly to SCADA and data logging architecture. The standard requirement is that each probe in a monitored system carries a unique identifier - a tag number, asset number, or serial reference - that links it to its calibration certificate history. When a probe is swapped, the new probe's identifier and its initial calibration certificate must be recorded in the system at the point of installation, with a clear change record.

Without this linkage, a question about historical data cannot be fully answered. The data exists, but the calibration status of the instrument that generated it is unknown - and in a pharmaceutical GDP audit or a food safety investigation, that gap is a significant finding.

Where temperature monitoring systems are integrated with SCADA or PLC infrastructure - as is typical in pharmaceutical clean rooms, automated cold-stores, and food processing lines - the JBB Electrical approach links calibration records to specific tag identifiers within the control system. This means that any historical query can be resolved against the probe's documented calibration state at the relevant time, satisfying the traceability requirement that UKAS traceable calibration standards and GDP frameworks both require.

For facilities running SCADA-integrated temperature monitoring, it is also worth considering how calibration offset corrections are applied and documented. Where a correction factor is applied at the transmitter or in PLC software following recalibration, this must be recorded as an engineering change with a defined effective date. Historical data recorded before the correction was applied was generated under the previous measurement state - that context must be preserved, not overwritten.

At What Point Has a Probe Failed Calibration - and What Happens Next

A probe fails calibration when its as-found deviation at any calibration point exceeds the defined acceptance tolerance for the application. The point of failure is not ambiguous - it is a comparison between the measured deviation and the documented acceptance criterion. What is less straightforward is what happens next, and this is where the process matters as much as the measurement.

Immediately on confirming a calibration failure, the first question is impact assessment. How long has the probe been out of tolerance? The as-found reading at the previous calibration provides the baseline. If the probe was within tolerance at the last calibration 12 months ago, and the current as-found shows a drift that places it outside tolerance, the out-of-tolerance period began at some point during that 12-month interval. The precise onset cannot be determined retrospectively - which is why calibration interval selection matters for regulatory defensibility.

1. Record the as-found deviation and formally document the calibration failure against the probe identifier.

2. Conduct a retrospective impact assessment: identify what temperature data was recorded during the potential out-of-tolerance period and assess whether product safety, process integrity, or compliance decisions were affected.

3. Apply the calibrate-or-replace decision criteria. Where recalibration is appropriate, apply any required offset correction and document it as an engineering change. Where replacement is required, install the new probe with its calibration certificate and record the change in the monitoring system.

4. Confirm the as-left reading is within tolerance before returning the probe to service. Do not return a probe to service on the basis of recalibration without confirming the as-left condition.

5. Notify any quality, compliance, or regulatory functions who need to assess whether the impact assessment requires a deviation report, product review, or corrective action.

In regulated environments - pharmaceutical manufacturing, licensed food production, GDP-certified cold-chain operations - a calibration failure is typically a recordable event under the site's quality management system. The calibration records for regulatory compliance must therefore include not just the certificate, but the impact assessment outcome and the corrective action taken.
